Zündschloss

Ich habe an meiner Chief 1947 ein Zündschloss mit nur 3 Klemmen. Dort sind 7 Kabel angeklemmt. Sobald ich auf Licht schalte kommt kein Funke mehr.
Ein neues Zündschloss habe ich mir bei Jürgen Mattern besorgt. Das Neue hat aber 8 Klemmen.

Kann mir jemand mit einem Schaltplan für das Zündschloss weiter helfen.

Danke

Kay

viewtopic_body_postrow_content_after viewtopic_body_postrow_post_notices_before viewtopic_body_postrow_post_notices_after viewtopic_body_postrow_signature_before viewtopic_body_postrow_signature_after viewtopic_body_postrow_post_content_footer

viewtopic_body_postrow_back2top_before

viewtopic_body_postrow_back2top_prepend viewtopic_body_postrow_back2top_append

viewtopic_body_postrow_back2top_after

viewtopic_body_postrow_post_after viewtopic_body_postrow_post_before

viewtopic_body_avatar_before viewtopic_body_avatar_after viewtopic_body_post_author_before Ali viewtopic_body_post_author_after: Posts: 138; Joined: Thu 12. Nov 2009, 18:42; Contact:
Contact Ali

viewtopic_body_contact_icon_prependWebsiteviewtopic_body_contact_icon_append

viewtopic_body_post_subject_before

Re: Zündschloss

viewtopic_body_post_buttons_list_before

viewtopic_body_post_buttons_before

Quote

viewtopic_body_post_buttons_after

viewtopic_body_post_buttons_list_after viewtopic_body_postrow_post_details_before

Post by Ali » Sat 24. Dec 2016, 02:56

viewtopic_body_postrow_post_details_after viewtopic_body_postrow_content_before

Hallo Kay,

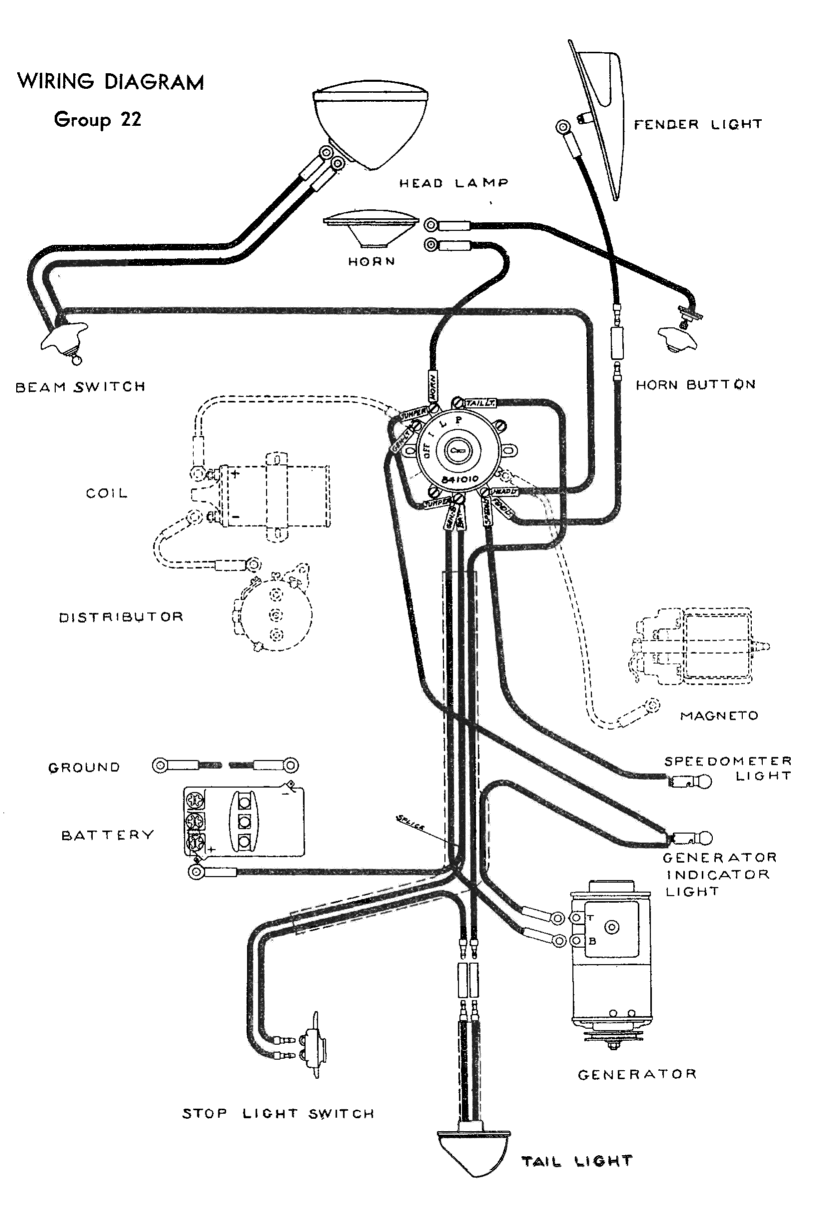

vielleicht passt dieser Schaltplan.

Grüße
Thorsten
